XY DC-EY60-60KW

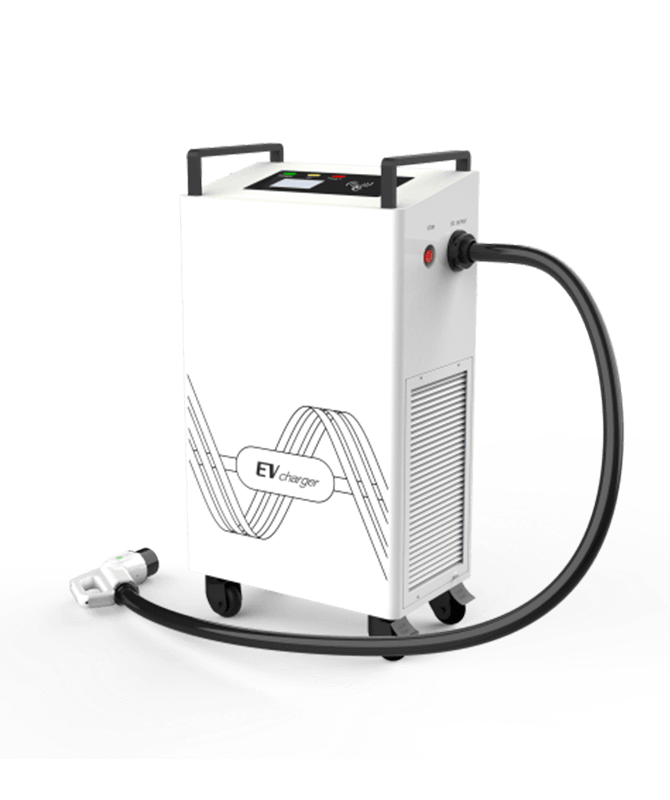

XY DC-EY60 series Mobile mobile intelligent DC quick charger support CCS2
Xinya Dongfang XY DC-EY60-60KW series DC charger is a newly developed new generation of mobile charger. It has the characteristics of small volume, complete functions, intelligent stability and high cost performance. It is suitable for daily power supplement, on-board distribution, rental and driving standby charging. It is convenient, flexible, compact, high power density, strong compatibility and combined with multiple protection functions, The remote control and upgrade function is safe, reliable, stable and easy to maintain. It can also flexibly match different types of modules according to customers’ different application environments and different vehicle models to meet the needs of a variety of charging occasionsApplications
XY AC-E7 wall-mounted AC charger is composed of main control unit, human-computer interaction interface, charging interface, metering and charging unit.It’s resistant to vibration and has complete protection functions,the protection class is IP54, which covers a small area, meets the installation and use of indoor an
- 1. Multiple protection functions, safe, stable, and reliable
- Modular design, flexible configuration and easy maintenance
- High degree of protection and w ide voltage output
- Single gun split or double gun split optional, the number of split cabinet flexible configuration
- Ring flexible power distribution design, full and reasonable use of idle module resources, to maximize the charging benefits
- Energy-saving design, greatly reduce the standby power consumption
- Support CCS2&CCS1&GB/T standard quick charging
Technical parameter
| Model | XY DC-EY60-60KW |
| Nominal Input | |
| Power connection | 3P+N+PE |
| Voltage & Frequency | 400VAC±10%；45~65Hz |
| Total harmonic wave factor | THD＜5% |
| Power factor | ≧0.99 |
| Out Parameter | |
| Voltage | 200-1000V |
| Max.Current | 200A |
| Max. Power | 60kw |
| Steady current precision | ±0.5% |
| Output current precision | ≤±1%（≥30A） |
| ≤0.3A（＜30A） | |
| Output voltage precision | ±0.5% |
| Efficiency | ≧94% |
| General Specifications | |
| Charging standard | EN/IEC 61851-1, EN/IEC 61851-21, EN/IEC 61851-23 |
| DC plugs | IEC 62196-3(CCS2) |
| Display | 4.3”TFT Color touch screen |
| RFID system | Mifare (Classic, DesFire EV1) or others on request |
| Communication | GPRS /LAN/Wi-Fi |
| Communication Protocols | OCPP1.6 |
| Place of installation | Indoor |
| Cooling mode | forced air cooling |
| Altitude | 2000m |
| Protection grade | IP32 |
| Operating Temperature | -20-60℃（Derating over 50℃ ） |
| Storage Temperature | -40-70℃ |
| Humidity | 5%~95% without condensation |
| Sound noise | <65 dB in all directions |
| Length of charging gun cable | 4m(optional) |
| Dimensions(W*D*H) | 520*310*980mm |
| Weight（Contains modules） | 85kg |
